Streacom FC10 Alpha

$ 380.00 MSRP

Streacom delivers cases that are cutting edge in both design and performance. The cases are of premium grade extruded aluminium, with a fine sandblast texture, for a high quality look and feel. The efficient heat sink and Direct Touch heatpipes, paired with superior airflow offer optimum silent cooling performance.



Clear selection
SKU: INT-ST-FC10 Category:

Product Description

For the sake of delivering high compatibility, the cases support USB 3.0 natively at its sides, uses a universal optical drive eject button (optional), and uses a unique drive tray. The drive tray pivots for easy drive access, supports variable drive positions for different drive sizes and supports multiple drives.

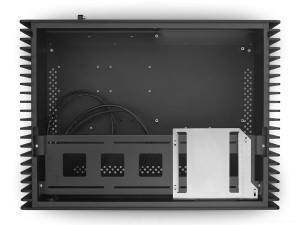

At 435mm wide and 100mm high, the FC10 is designed to be a large silently cooled PC, able to accommodate big components. It has 2 full height expansion slots*, 2 USB 3.0 ports, and supports a minimum of 5 drives (2×3.5” + 3×2.5”) and a maximum of 11**. The case comes in silver or black.

* A flexible PCI riser is needed to connect any PCI cards to the motherboard.
The lower slot only supports cards up to 190mm long, while the upper supports up to 300mm long.
** Depends on configuration (motherboard size, optical slot and PSU)
A 11 drive setup is 5×3.5” + 6×2.5” drives. It is not possible to fit more than 5×3.5” or 6×2.5” drives.
Chassis Material Premium Grade (6063) All Aluminium, 4mm Thick Extruded Panels
Drive Capacity Minimum 2×3.5″+ 3×2.5″, Maximum 5×3.5″ + 6×2.5″*
Optical Drive Bays 1 x Slim Slot Loading Drive
Expansion Slot 2x Full Height Expansion Slots, Flexible PCI-E Riser Required
USB Ports 2x USB3.0, Left & Right Side
Cooling Heatpipe Direct Touch 4 Pipes – Recommended CPU TDP 65W, Max TDP 95W
Dimension (W x D x H) 435 x 319 x 100mm
Power Supply Streacom ZF240 or Nano PSU (Not Included)
IR Receiver Streacom Flirc (Not Included)
Net Weight 5.4KG
Warranty 24 months
*Depends on configuration

fc10b_alpha_025025
fc10b_alpha_025270
fc10b_alpha_opt_025000
fc10b_alpha_opt_025025
fc10b_alpha_opt_025325
fc10b_alpha_opt_090000
fc10s_alpha_000000
fc10s_alpha_000090
fc10s_alpha_000215
fc10s_alpha_opt_000000
