Streacom F1C EVO

Description
Specifications
Gallery
Reviews (0)
Downloads

Product Description

For the sake of delivering high compatibility, the case uses a universal optical drive eject button (optional), and uses a unique drive tray. The drive tray is removable for easy drive access, and supports variable drive positions for different drive sizes, and supports multiple drives.

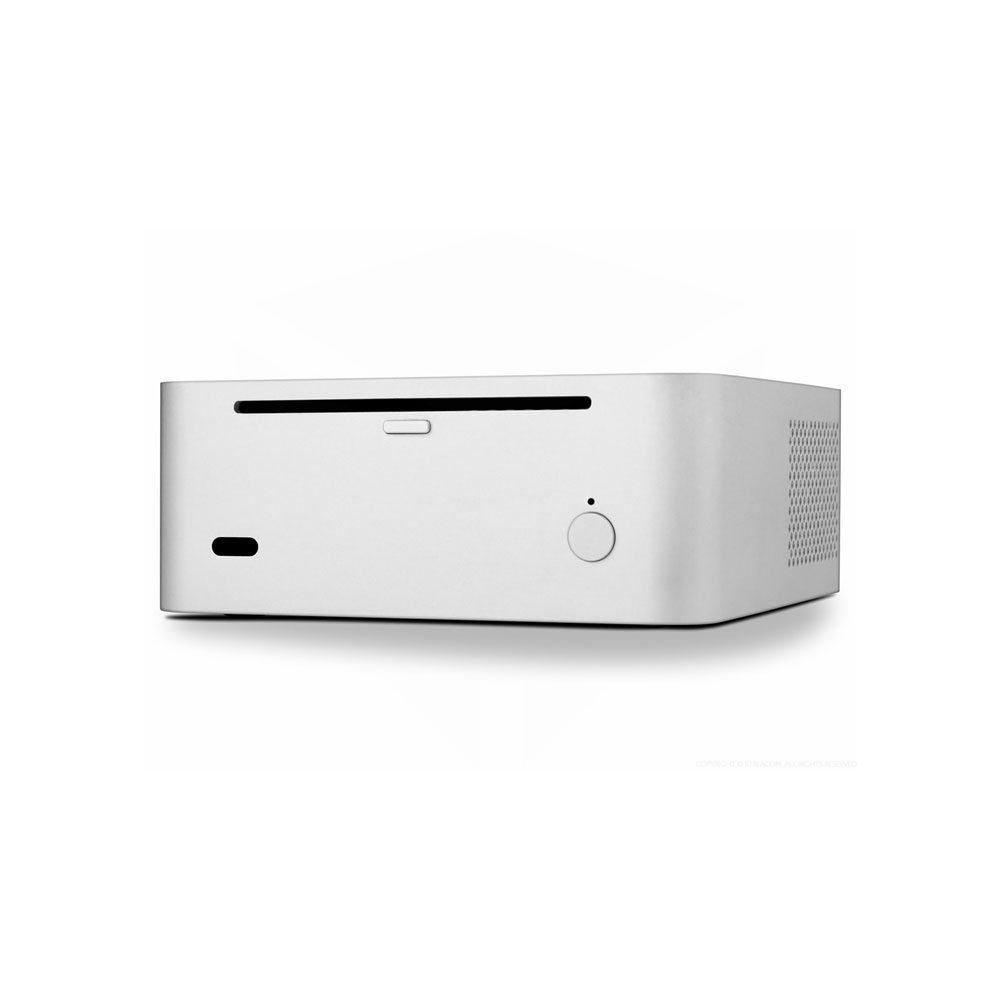

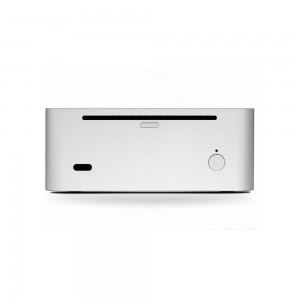

At 197mm wide and 77mm high, the F1C is designed to be a very compact actively cooled PC, fitting almost anywhere. The case fan can be up to 60mm* and the CPU cooler up to 34mm high**. For the sake of keeping the case size to a minimum, the case has no expansion slots, nor additional USB ports. The case does however support 3 2.5” drives, together with an optical drive slot. The case comes in silver or black.

* Only two sizes of case fans are supported. 60mm and 40mm.
** The CPU cooler height is limited by drives mounted under the tray: placing a 2.5” drive there limits it to 24mm.

Chassis Material	Premium Grade (6063) All Aluminium, 4mm Thick Extruded Panels
Dimensions (WxDxH)	197 x 197 x 77mm
Net Weight	1.6 KG
Drive Capacity	3 x 2.5”
Optical Slots	1x Slim Slot Loading Drive
Expansion Slots	None
USB Ports	None
IR Support	Streacom Flirc (Not Included)
Motherboard	Mini ITX
Power Supply	Streacom Nano PSU Series
CPU Cooling	34mm cooler height without 2.5” drives under the drive tray, 24mm with.
Casing Fans	Not included
Warranty	24 Months
